Processor

‎3.2GHz 16‑core Intel Xeon W processor, Turbo Boost up to 4.4GHz

RAM

256GB of DDR4 ECC memory

Hard Drive

1TB SSD1 storage

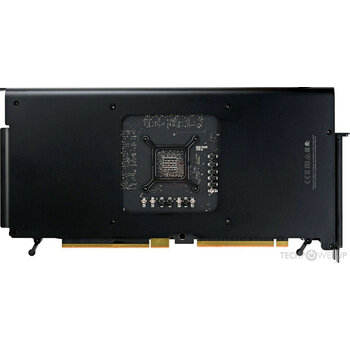

Graphics Coprocessor

‎AMD Radeon Pro 580X

•36 compute units, 2304 stream processors

•8GB of GDDR5 memory

•Up to 5.6 teraflops single precision

•Two HDMI 2.0 ports on card

•Four DisplayPort connections routed to system to support internal Thunderbolt 3 ports

•Support for up to six 4K displays, two 5K displays, or two Pro Display XDRs

•Half-height MPX Module fits in an MPX bay and enables PCIe slot 2 for additional expansion

Wireless Type

• ‎802.11ac Wi-Fi wireless networking;³ IEEE 802.11a/b/g/n compatible

•Bluetooth 5.0 wireless technology

Connections

I/O card installed in the half-length x4 PCI Express slot with:

Two USB 3 ports

•Support for USB-A (up to 5Gb/s)

Two Thunderbolt 3 ports

•Support for Thunderbolt 3 (up to 40Gb/s)

•Support for USB-C (up to 10Gb/s)

•Support for DisplayPort

Two 10Gb Ethernet ports:

•Support for 10Gb Ethernet performance over copper cabling

•Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors

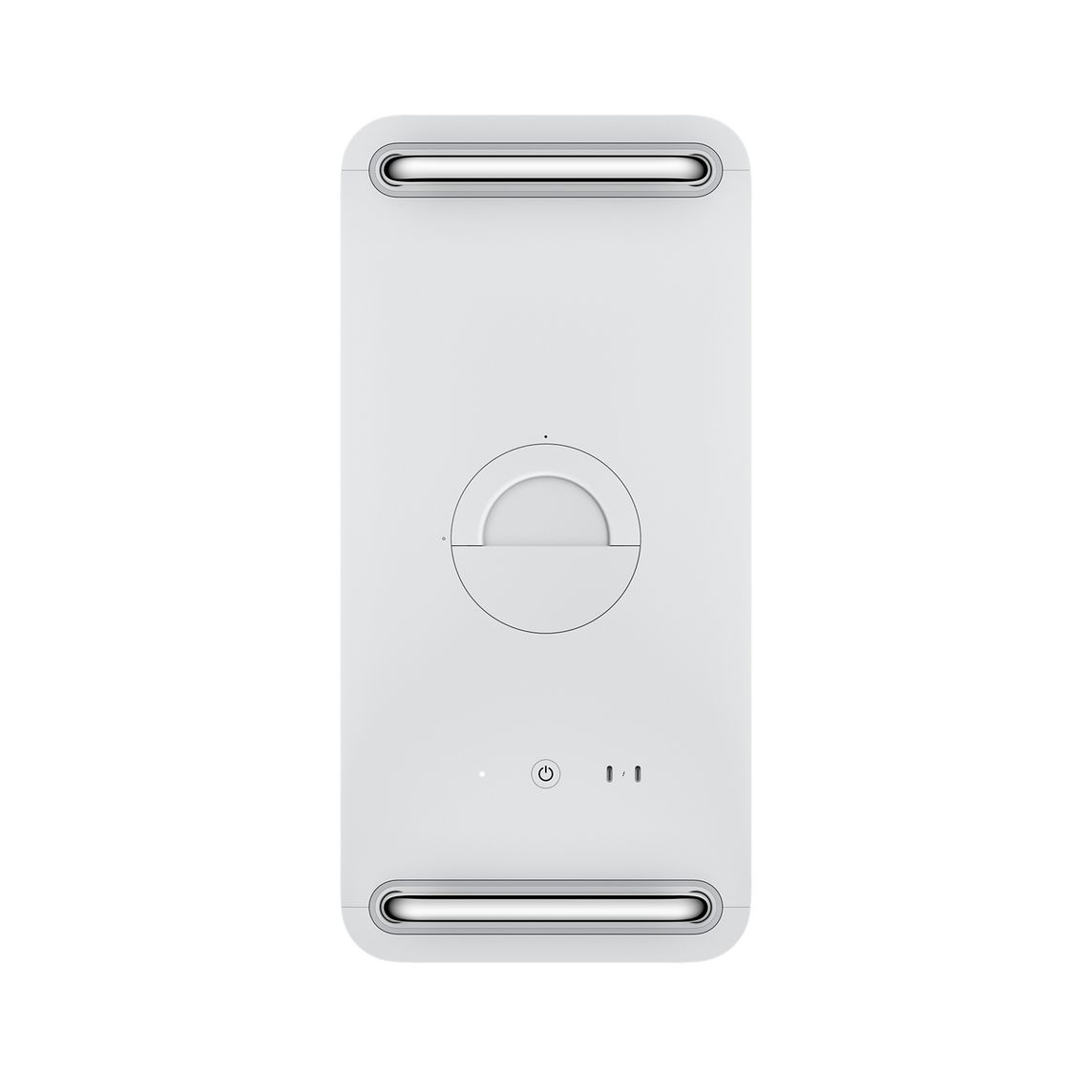

Two Thunderbolt 3 ports on the top of the tower enclosure

•Support for Thunderbolt 3 (up to 40Gb/s)

•Support for USB-C (up to 10Gb/s)

•Support for DisplayPort

Two Thunderbolt 3 ports on the front of the rack enclosure

•Support for Thunderbolt 3 (up to 40Gb/s)

•Support for USB-C (up to 10Gb/s)

•Support for DisplayPort

Display Support

Connect up to:

•Three dual-cable 5K displays

•Six Thunderbolt displays

Audio Support

• Built-in speaker

•3.5 mm headphone jack with headset support
