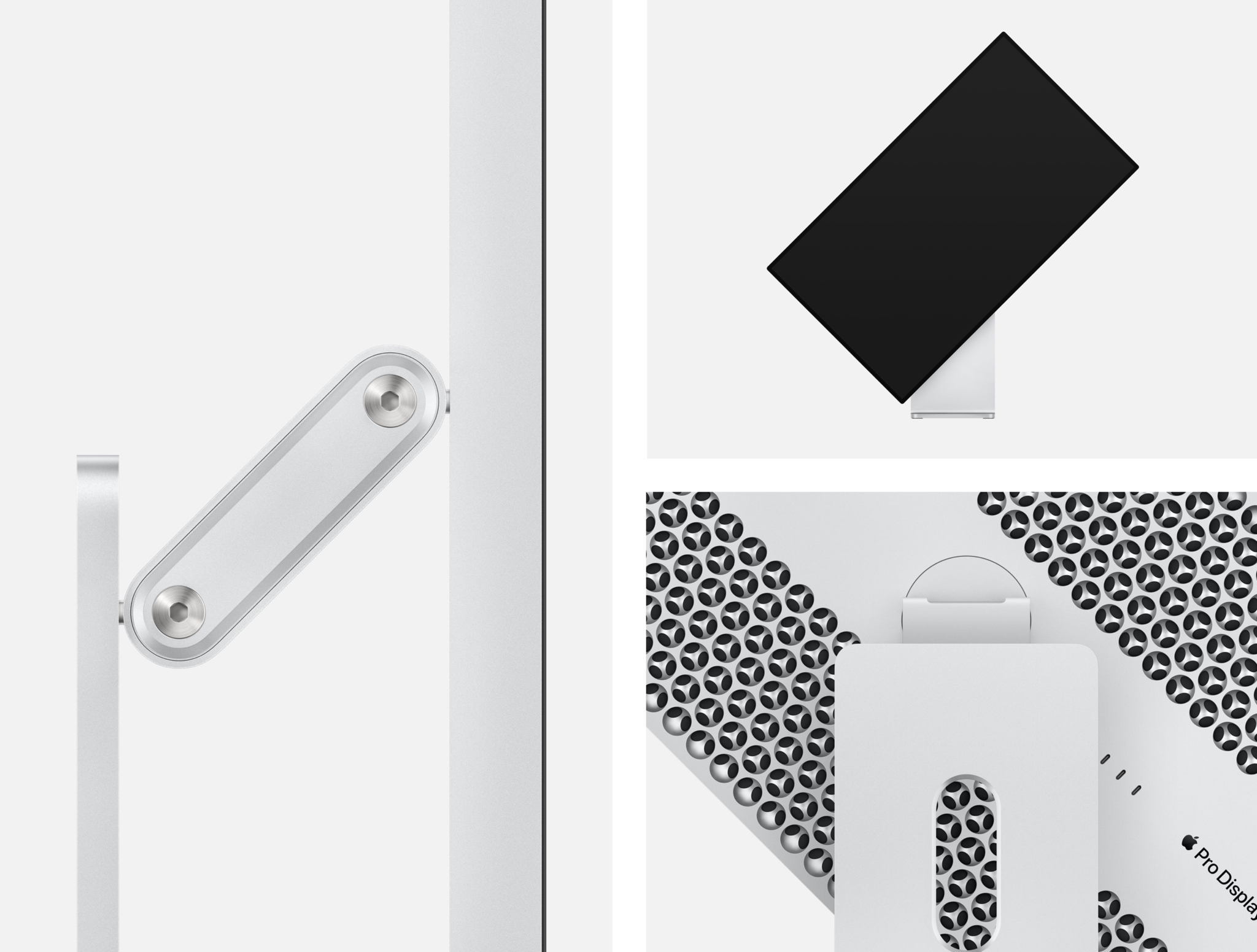

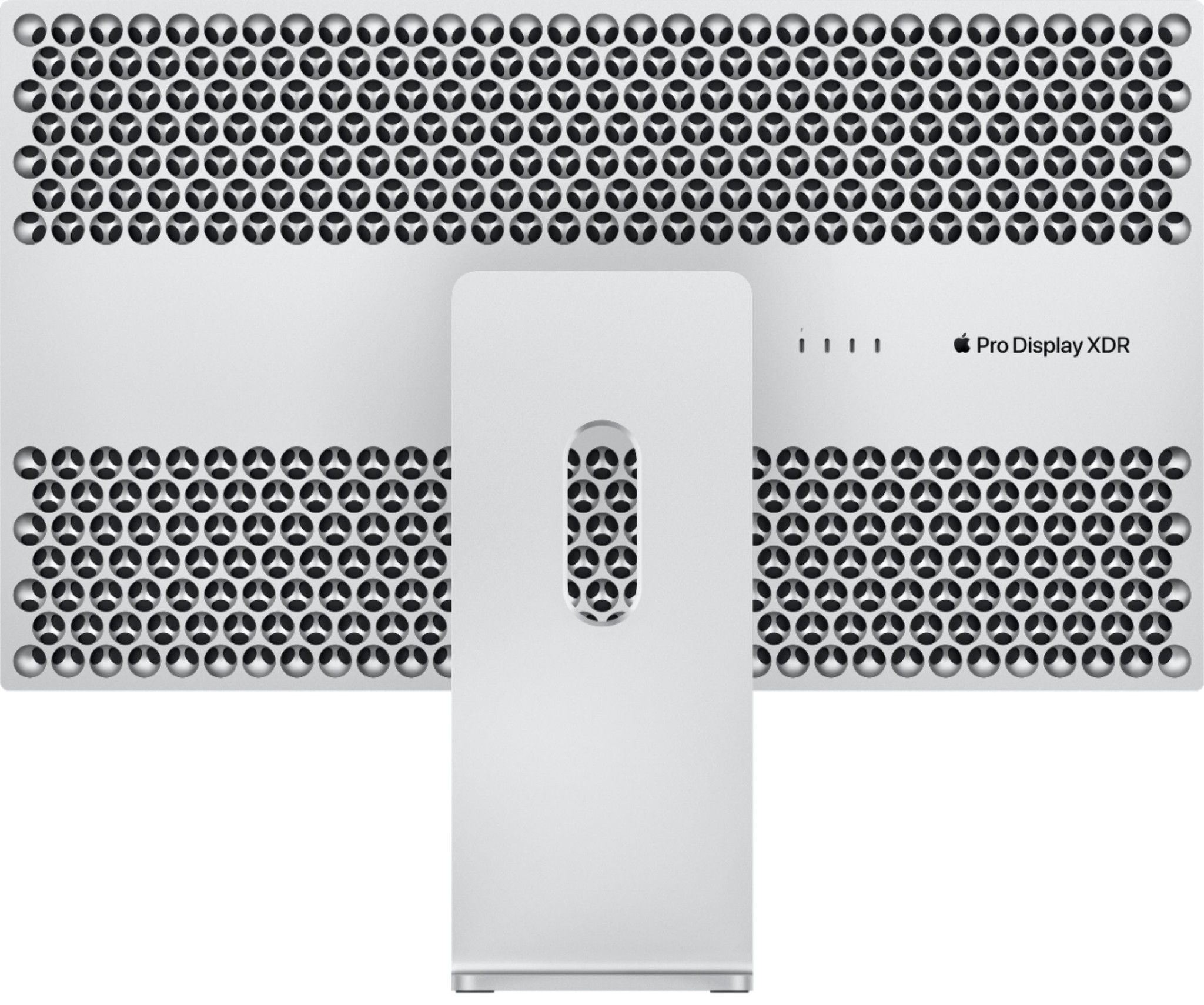

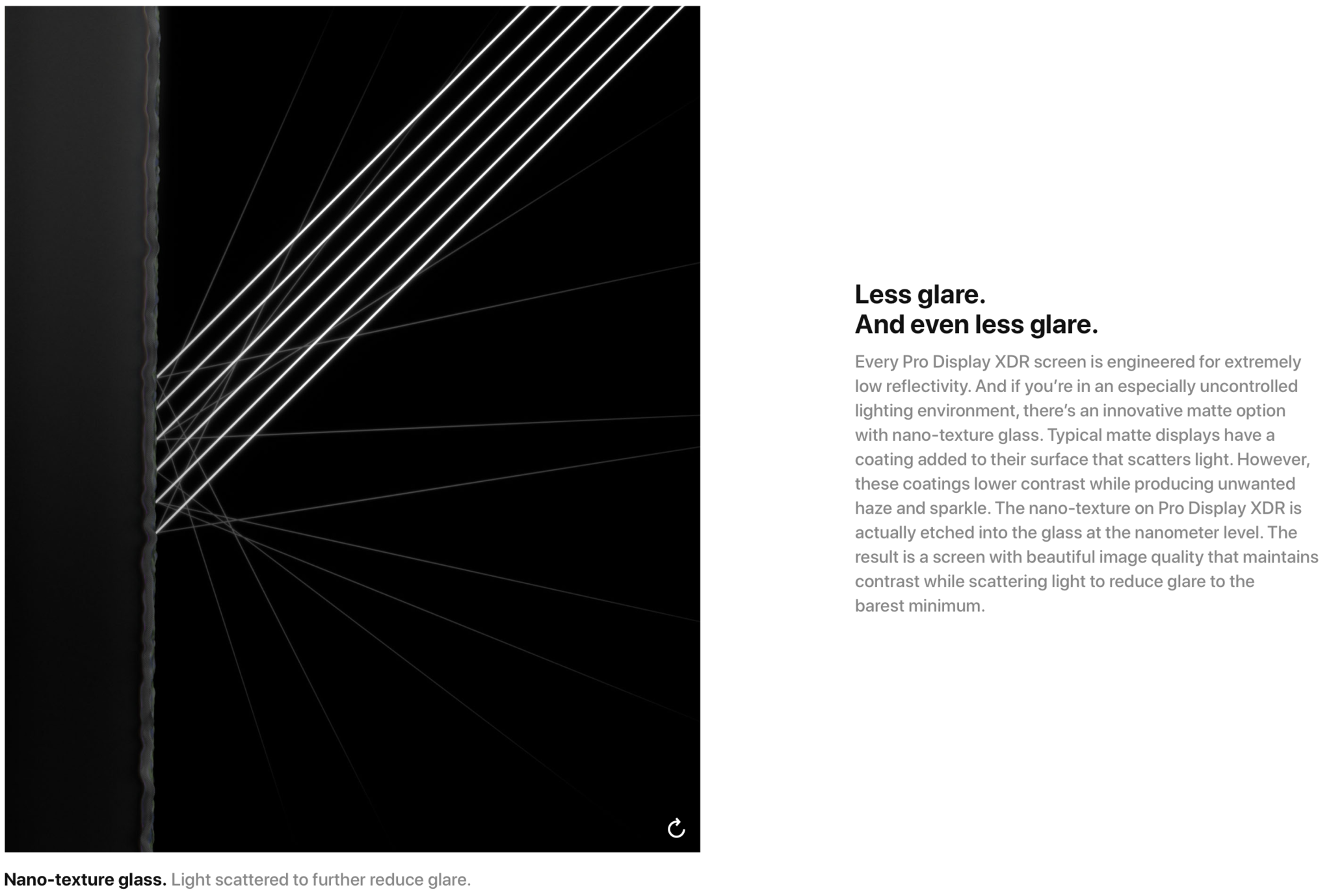

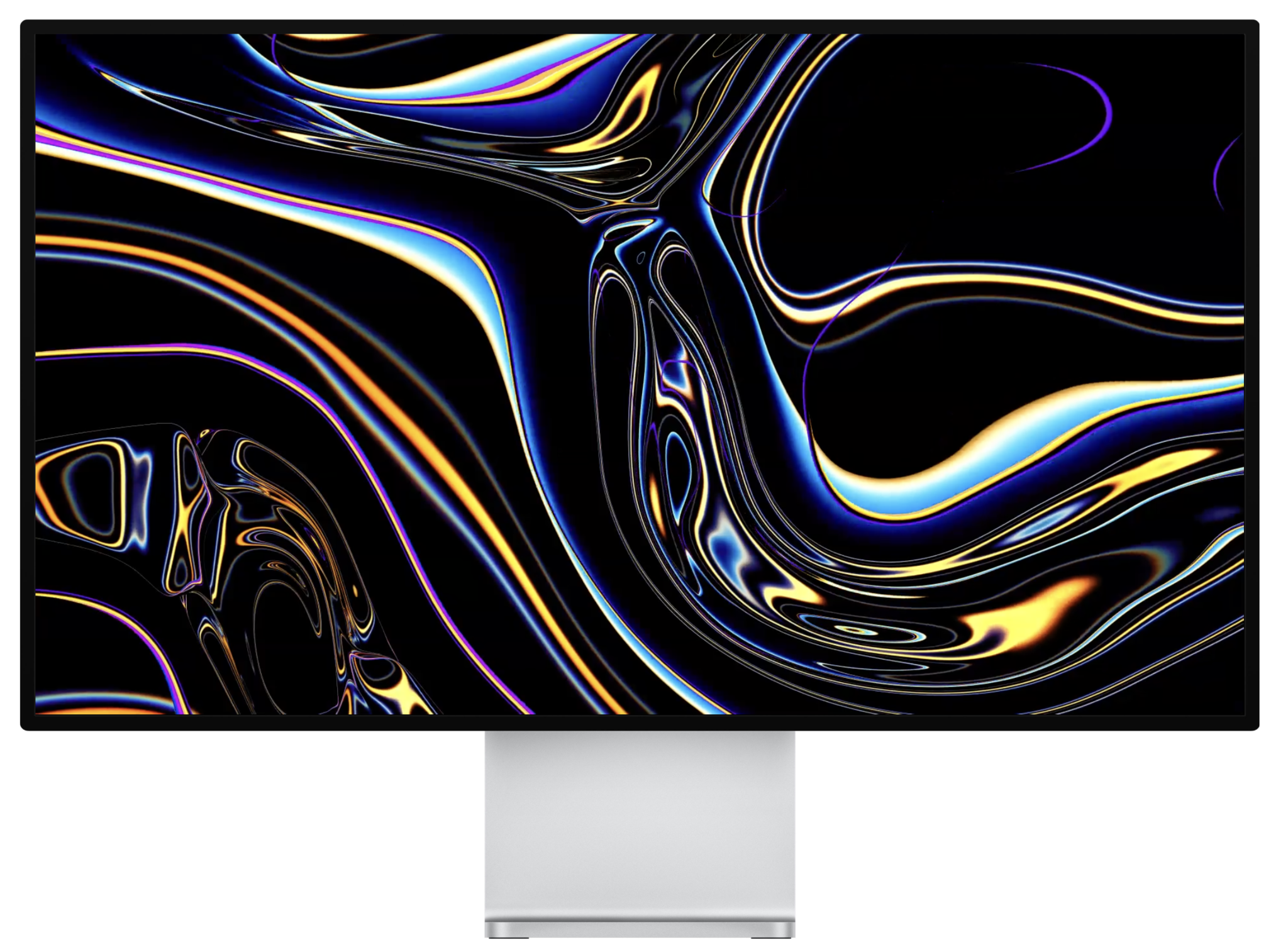

Apple Pro Display XDR. A massive 32" LCD display with Retina 6K resolution and 20.4 million pixels.¹ Gorgeous P3 wide color and 10-bit depth for over a billion colors and very smooth gradients. Extreme dynamic range (XDR) with quality brightness and contrast for vivid, true-to-life images. Extra-wide viewing angle and reference modes based on industry standards. Nano-texture glass option for minimized glare. Pair with the modular Pro Stand for adjustability and flexibility on the go, or use the VESA mount adapter to attach to VESA mounts or arms. It's a groundbreaking display built for the most demanding professionals.
Specs
|
Screen Display
|
32-inch (diagonal) IPS LCD display with oxide TFT technology

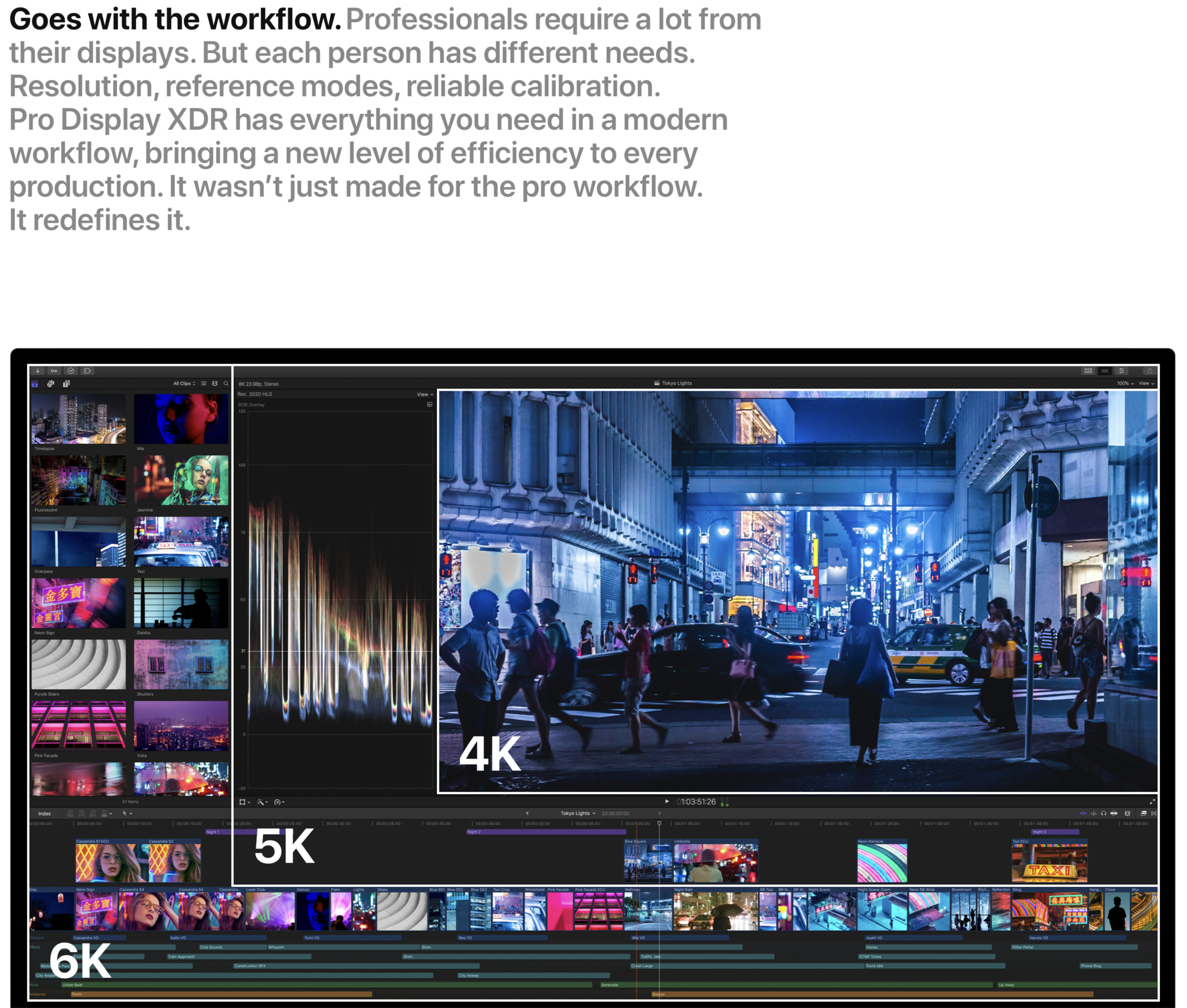

- Resolution: 6016 by 3384 pixels (20.4 million pixels) at 218 pixels per inch
- Aspect ratio: 16:9
XDR (Extreme Dynamic Range)
- Brightness: 1000 nits sustained (full screen), 1600 nits peak
- Contrast ratio: 1,000,000:1
- Color: P3 wide color gamut, 10-bit depth for 1.073 billion colors
- SDR brightness: 500 nits

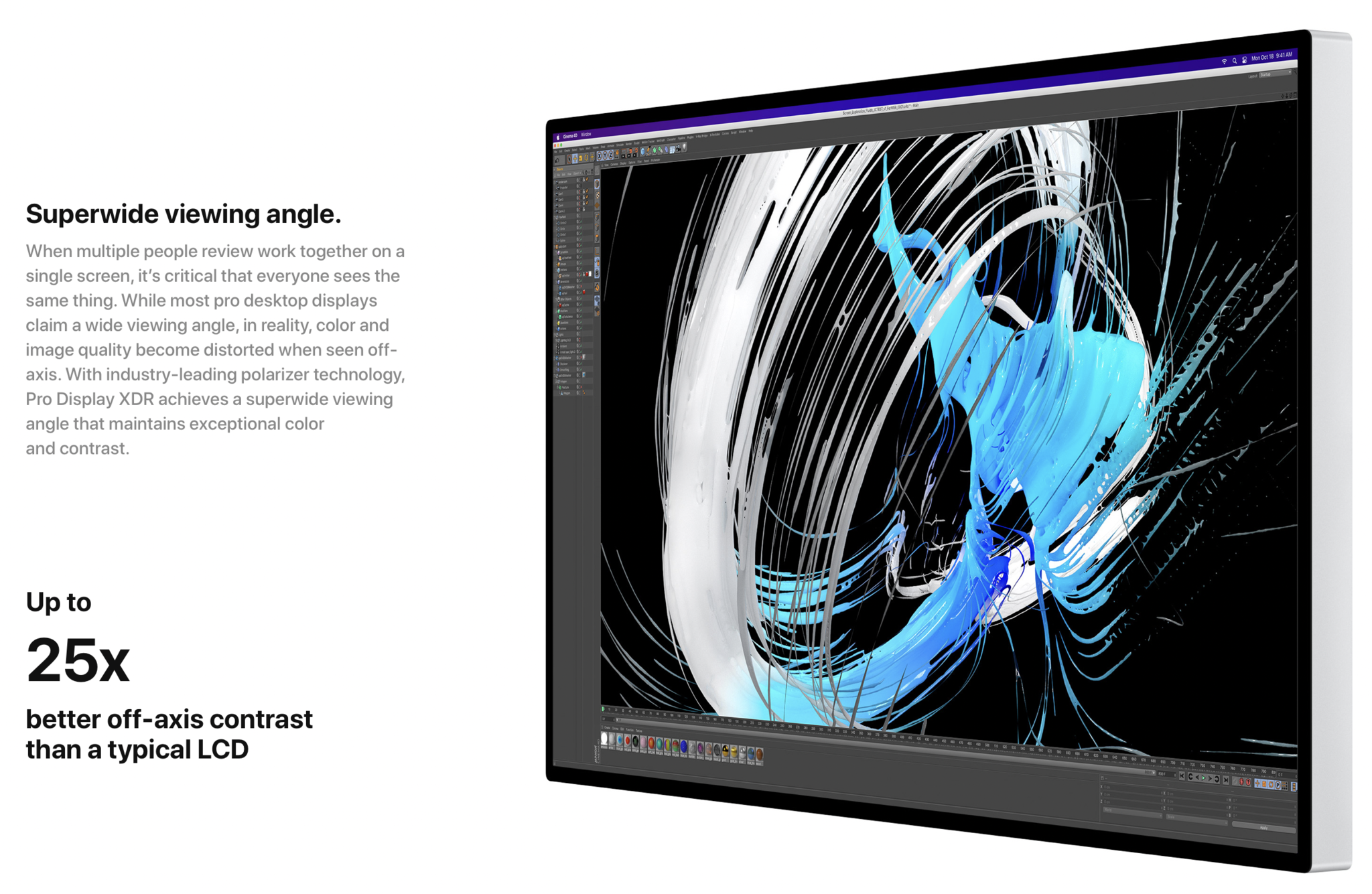

- Viewing angle: Superwide angle with high-fidelity color and contrast at 89º left, 89º right, 89º up, 89º down
Fully laminated; 1.65% reflectivity (typical)
|
|
Technology
|

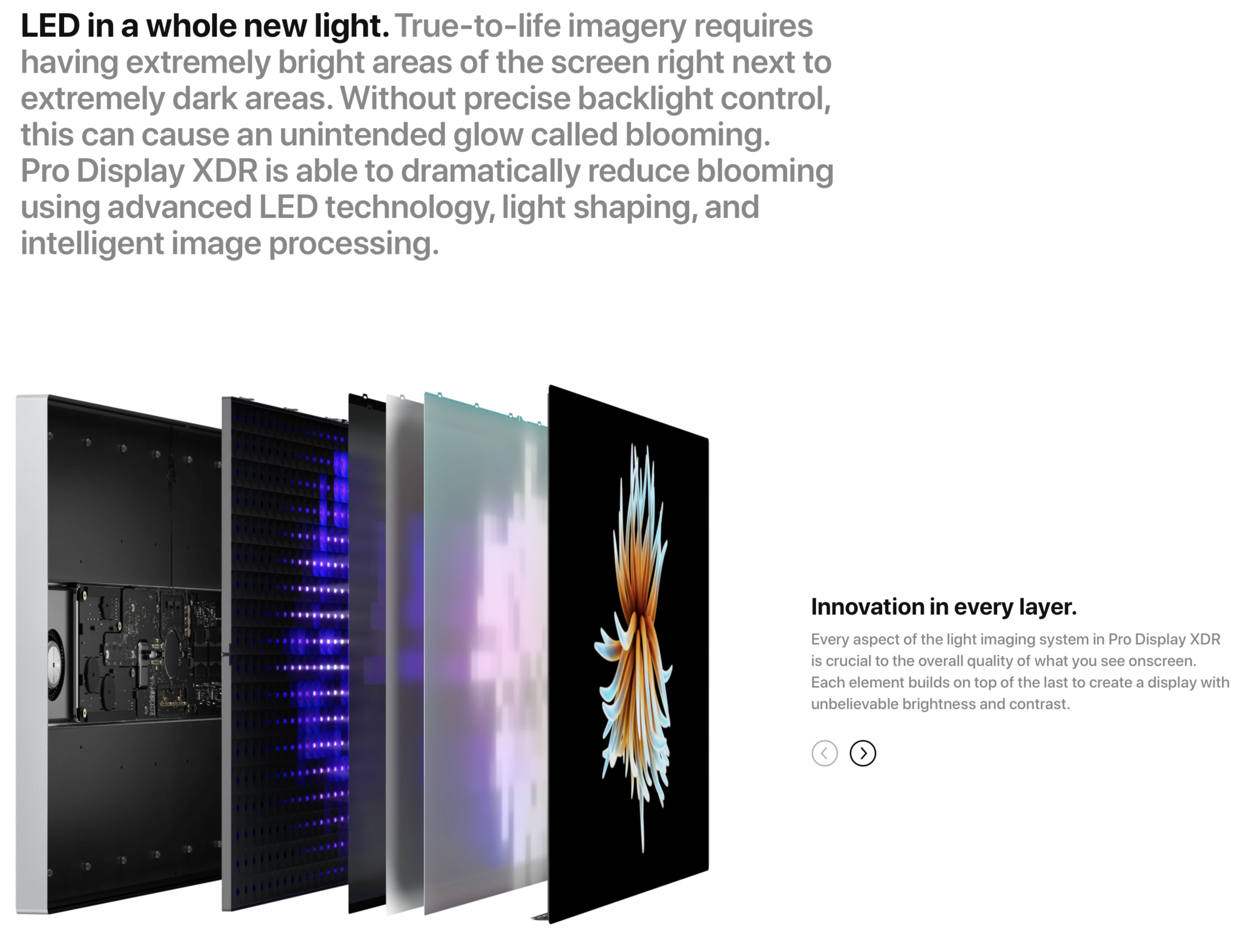

- 2D backlighting system using 576 full array local dimming zones
- Apple-designed timing controller (TCON) chip engineered to precisely control high-speed modulation of both 20.4 million LCD pixels and 576 LEDs in backlight for seamless synchronization
- True Tone technology with dual ambient light sensor (ALS) design to ensure an accurate viewing experience in any ambient lighting condition
|
|
Reference Modes
|
Available reference modes:
- Pro Display XDR (P3-1600 nits)
- Apple Display (P3-500 nits)
- HDR Video (P3-ST 2084)
- HDTV Video (BT.709-BT.1886)
- NTSC Video (BT.601 SMPTE-C)
- PAL and SECAM Video (BT.601 EBU)
- Digital Cinema (P3-DCI)
- Digital Cinema (P3-D65)
- Design and Print (P3-D50)
- Photography (P3-D65)
- Internet and Web (sRGB)
|
|
Software Features
|
The following features require macOS Catalina 10.15.2 or later:
- Reference mode selection
- Custom reference modes
- Reference status indicator
- Brightness control

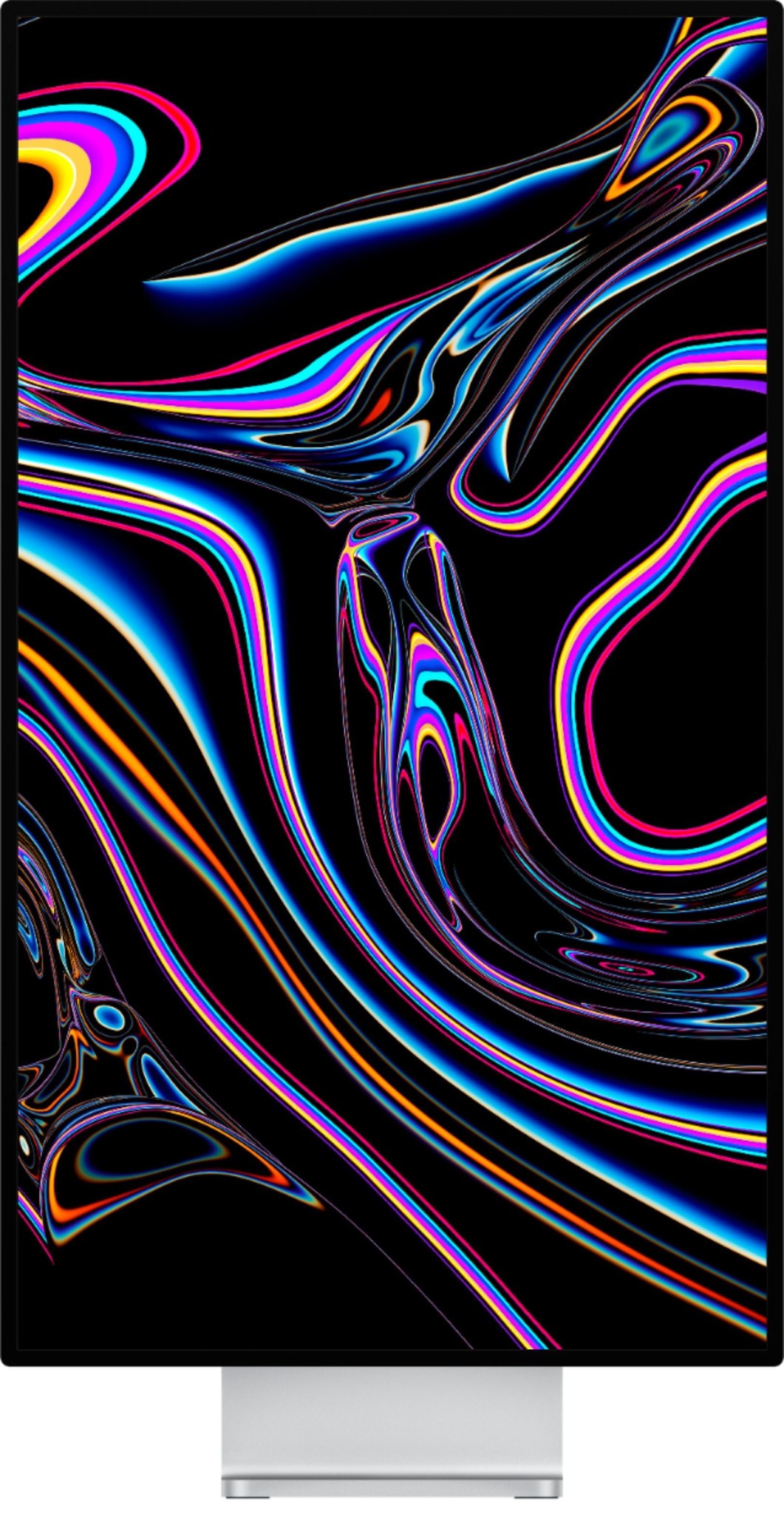

- Portrait/landscape detection
- Night Shift
- True Tone
- Dolby Vision, HDR10, and Hybrid-Log Gamma (HLG) playback support
- User calibration
|
|
Connections
|

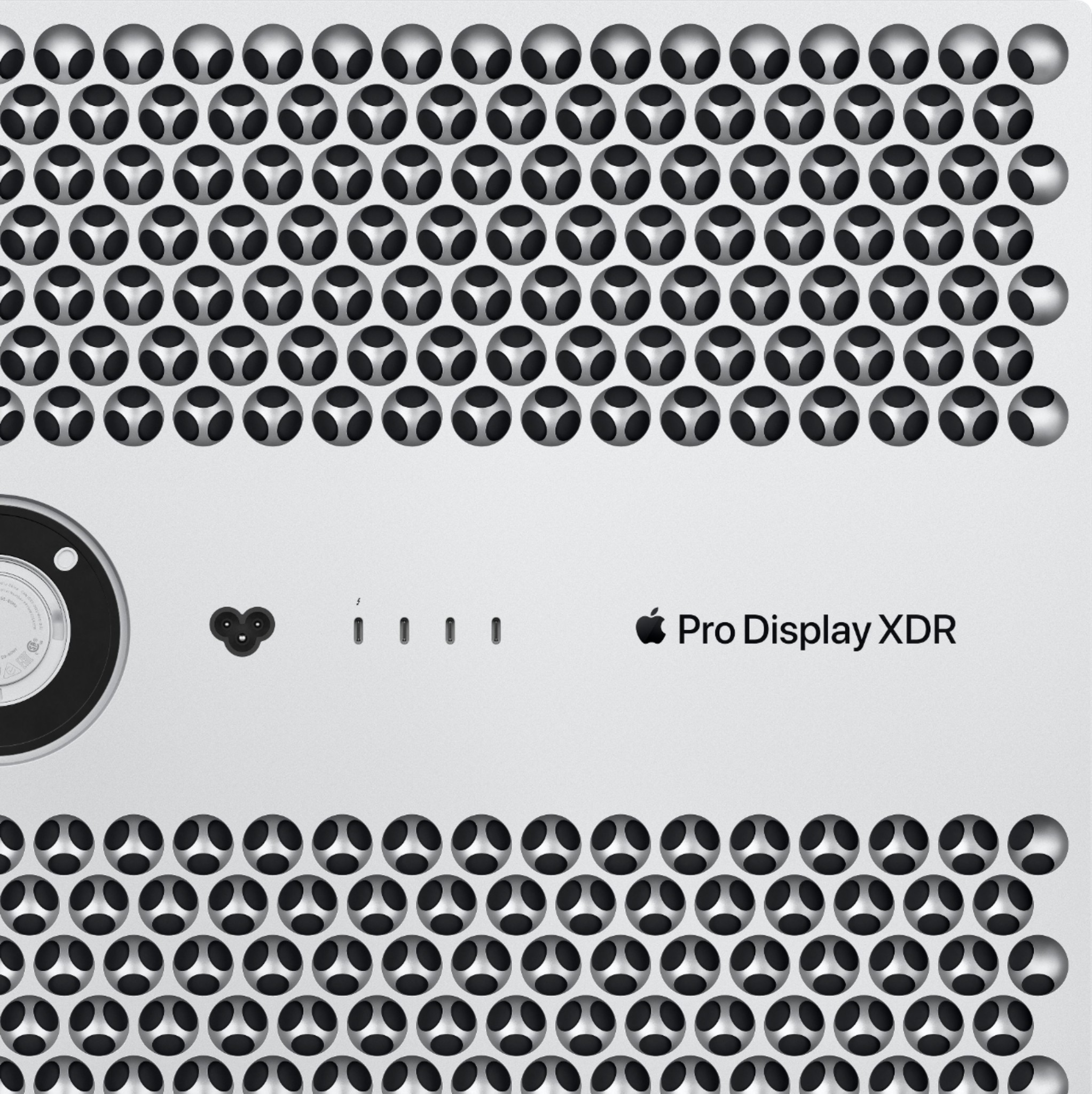

One Thunderbolt 3 (USB-C) port, three USB-C ports
- One upstream port for Mac Pro or other Thunderbolt 3 host (96W host charging)
- Three USB-C (USB 2) ports for charging or syncing
|
|
Compatibility
|
Pro Display XDR is compatible with the following Mac models running macOS Catalina 10.15.2 or later:
- Mac Pro (2019) with MPX Module GPUs
- 16-inch MacBook Pro with four Thunderbolt 3 ports (2019 or later)
- 16-inch MacBook Pro (2021)
- 14-inch MacBook Pro (2021)
- 15-inch MacBook Pro (2018 or later)
- 13-inch MacBook Pro with four Thunderbolt 3 ports (2020)
- 13-inch MacBook Pro with M1 chip (2020)
- MacBook Air (2020)
- MacBook Air with M1 chip (2020)
- 27-inch iMac (2019 or later)
- 24-inch iMac (2021)
- 21.5-inch iMac (2019)
- Mac mini with M1 chip (2020)
- Any Mac model with Thunderbolt 3 ports paired with Blackmagic eGPU or Blackmagic eGPU Pro
|
